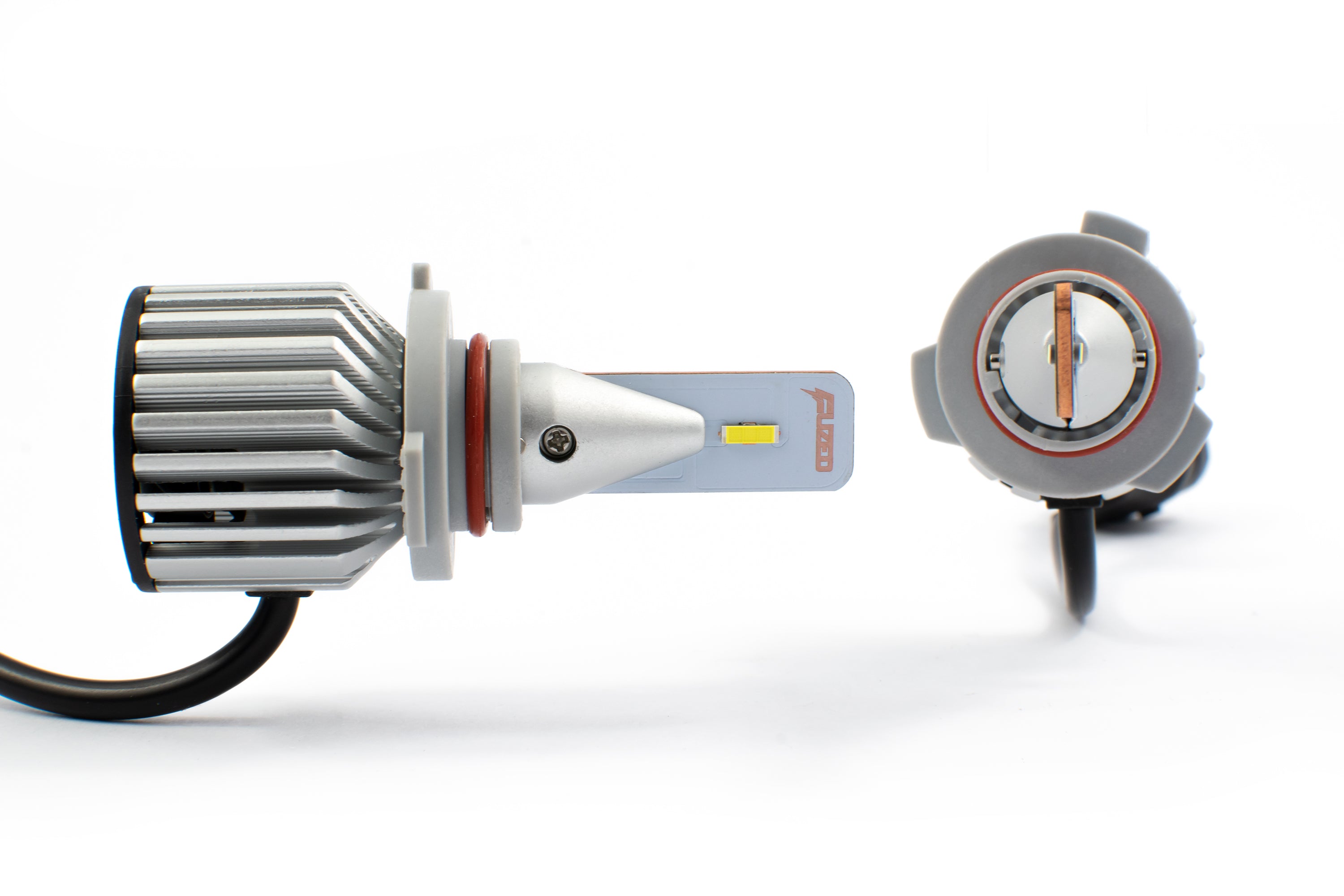

(Headlights - Projector Headlights) 7,000 LUMEN F1 Series LED Headlight Bulbs Kit 16-19


Select Kit: Low Beam 7,000 Lumen LED Kit
Price:
Sale price$109.99

Description

What vehicle does this fit?

This kit fits vehicle's equipped with factory 9005/HB3, 9140, 9145 and H10 Halogen Bulbs. For example: If your vehicle takes a size 9005/HB4 for your high beam headlights and a size 9145/H10 for your fog lights then you would need (2) sets of these bulbs. They are universal for both sizes.

What is the difference between Headlights and Fog Lights?

Headlights are your main beam bulbs located closest to your vehicle's hood. Fog lights are your auxiliary lights located lower in the vehicle's front bumper. Even though they are located in different areas on your vehicle and serve different functions, a lot of the times they both take the same size bulbs.

Is this a direct replacement?

Yes! This is a direct Replacement.

Does it work with factory wiring harness connectors?

Yes this kit is directly plug and play with your vehicle's factory 9005/HB3, 9140, 9145 or H10 connector.

Do I need to align my LED bulbs a specific way?

Yes, you need to align or "clock" your LED bulbs so that the LED chips are facing horizontally (Left to Right) so that you have the correct beam pattern. Our F1 Series are designed with a rotating bulb base/collar so that you can align your bulbs perfectly in the assembly after they are locked in.

Is wiring modification required?

No wiring modification required.

How difficult is installation?

Difficulty level is the same as replacing your factory halogen bulbs.

I've installed them but they aren't working

These bulbs are polarity specific - meaning they can be connected backwards. If they do not come on then simply turn the connector around 180 degrees and reconnect.

What tools are required?

No additional tools required.

What does Lumen actually mean?

Lumens measure the total amount of visible light to the human eye. Factory 9005/HB3, 9140, 9145 and H10 bulbs are rated at 1,000-1,700 lumens per bulb.

What color temperature is it?

This kit is a 6500K color temperature to match other factory LED lighting. Bright, sharp, bluish-white light like daylight.

Will water mess the bulbs up?

No, normal water and dirt from the road will not mess these bulbs up - They are designed to be waterproof for those situations.

What is included in the box?

This kit comes with (2) LED bulbs.

How long does installation take?

This depends on what type of vehicle you are installing them in. Most vehicles take less than one hour for installation.
