Looking for the correct 2015–2017 Ford F-150 bulb size? This guide covers factory halogen-equipped 2015, 2016 and 2017 Ford F-150 trucks and includes low beam, high beam, fog light, front turn signal, side marker, rear brake/turn signal, reverse light, cargo light, third brake light, and license plate light bulb sizes.
The most important thing to verify before ordering is your truck's factory headlight configuration. The headlight bulb recommendations in this guide are for F-150 trucks equipped with factory halogen headlights. Trucks equipped with factory LED headlights use integrated LED headlight assemblies and do not use the H11 and 9005 replacement headlight bulbs listed here.
Quick Navigation
- 2015–2017 F-150 Bulb Size Chart
- Factory Halogen vs Factory LED Headlights
- Headlights, Fog Lights, Turn Signals & Side Markers
- F-150 Extended Low-Beam Dust Covers
- Rear Lighting Bulb Sizes
- Cargo & Third Brake Lights
- Recommended LED Upgrades
- LED Installation & CANbus Information
- Light Output & Beam Pattern
- Frequently Asked Questions
2015–2017 Ford F-150 Bulb Size Chart
Use the chart below as a quick reference for the replaceable lighting positions covered by this guide.
| Lighting Position | Bulb Size | FUZED LED Upgrade |
|---|---|---|
| Low Beam — Factory Halogen | H11 | Shop H11 LED Bulbs |
| High Beam — Factory Halogen | 9005 / HB3 | Shop 9005/HB3 LED Bulbs |
| Fog Light | 9140 / H10 | 9145/H10 FUZED LED Upgrade |
| Front Turn Signal | 7444 | FUZED LED Switchback Turn Signals |
| Side Marker | 2825 / T10 | FUZED LED Side Markers |
| Rear Brake / Turn Signal | 3157 | Factory bulb size listed for reference |
| Reverse Light | 3156 | FUZED LED 2,100-Lumen 3156 Reverse Lights |
| Cargo Light | 921 / T15 | FUZED LED 921 White Cargo Light |
| Third Brake Light | 921 / T15 | FUZED LED 921 Red Third Brake Light |
| License Plate Light | 168 / 194 / T10 | Shop LED License Plate Bulbs |
Factory Halogen vs Factory LED Headlights
The 2015–2017 Ford F-150 was available with both factory halogen and factory LED headlight configurations.
Factory Halogen Headlights
Factory halogen-equipped trucks use:
- Low Beam: H11
- High Beam: 9005/HB3
Both positions can be upgraded with compatible FUZED LED bulbs.
Factory LED Headlights
Factory LED-equipped 2015–2017 F-150 trucks use an integrated LED headlight assembly instead of conventional replaceable H11 and 9005 halogen bulbs.
If your truck is equipped with factory LED headlights, the H11 low-beam and 9005/HB3 high-beam recommendations in this guide do not apply.
2015–2017 Ford F-150 Headlight, Fog Light, Turn Signal & Side Marker Bulb Sizes
Low Beam — H11
2015–2017 Ford F-150 trucks equipped with factory halogen headlights use an H11 low-beam bulb.
FUZED LED H11 bulbs provide an LED upgrade for the factory halogen low beam. Because of the available space behind the bulb on these trucks, an extended headlight dust cover is also required when installing the LED low beam.
Compare FUZED LED H11 Low-Beam Bulbs →
High Beam — 9005 / HB3
The factory halogen high beam uses a separate 9005/HB3 bulb.
Compare FUZED LED 9005/HB3 High-Beam Bulbs →

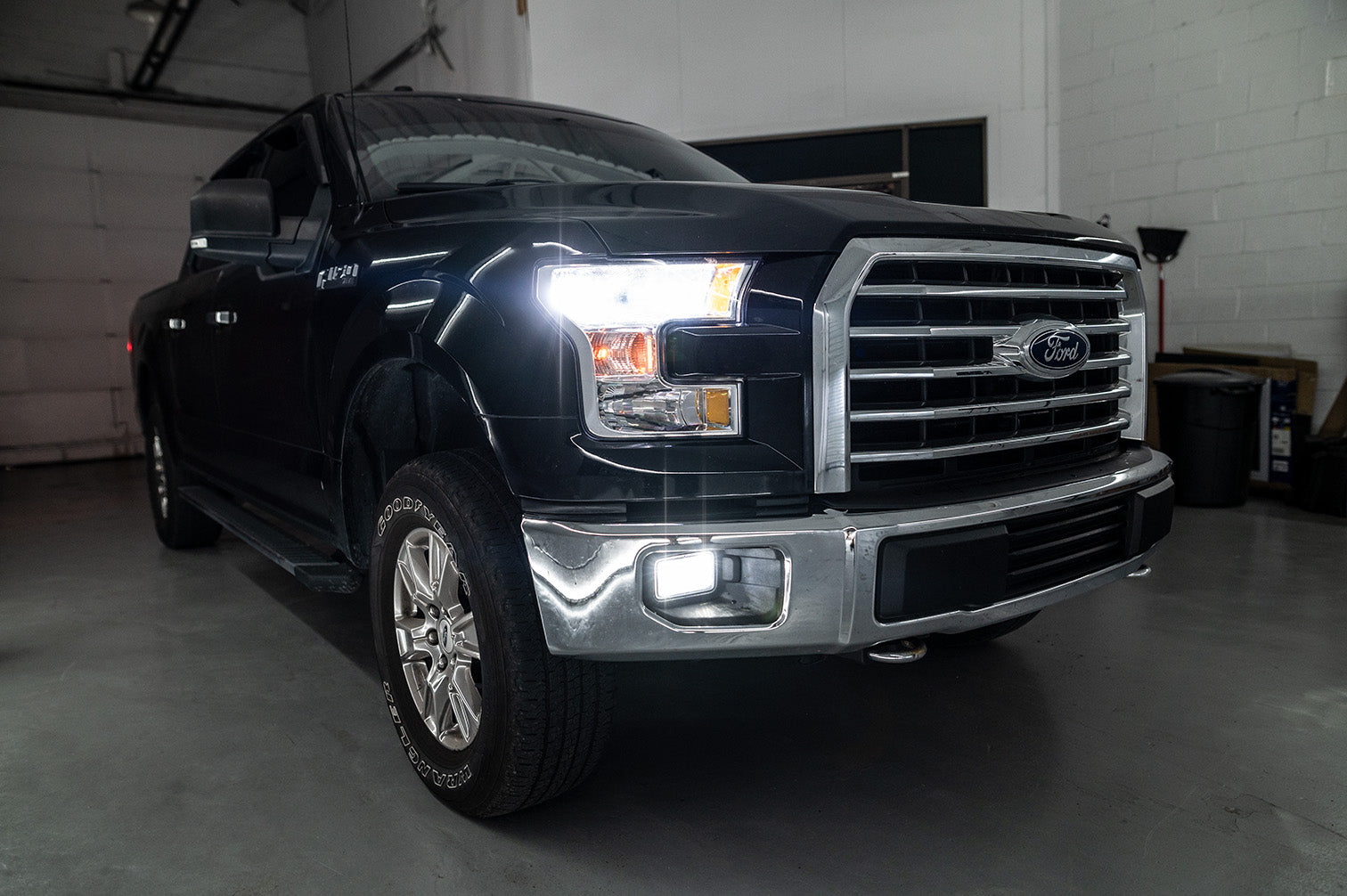

FUZED LED Headlight Upgrade
Upgrading the factory halogen H11 low beams and 9005/HB3 high beams to compatible FUZED LED bulbs provides brighter, whiter illumination compared with the original halogen lighting.
Correct installation and LED-chip orientation are important for maintaining a useful beam pattern, so bulb positioning should always be checked after installation.
Fog Light — 9140 / H10
The factory halogen fog lights use a 9140/H10 bulb.
The compatible FUZED LED upgrade uses our 9145/H10 LED fog-light bulb.
Shop FUZED LED 9145/H10 Fog Light Bulbs →
Front Turn Signal — 7444
The 2015–2017 Ford F-150 uses a 7444 front turn-signal bulb.
A compatible FUZED LED switchback turn-signal bulb can be used in this position.
Shop FUZED LED Switchback Turn Signal Bulbs →
Side Marker — 2825 / T10
The front side-marker bulb uses a 2825/T10-size bulb.
Because bulb electronics, color, socket depth, and vehicle application can vary, verify the exact replacement intended for this position before ordering an LED upgrade.
Extended Dust Covers Are Required for the H11 LED Low Beam
When installing an LED bulb in the H11 low-beam position, additional clearance is needed behind the LED cooling assembly.
The factory low-beam dust cover does not provide enough clearance for the LED upgrade. The extended F-150 dust covers provide additional room behind the bulb while keeping the rear of the headlight housing protected.
The same extended dust covers used on the 2018–2020 trucks also fit the 2015–2017 F-150.
The H11 LED bulbs and extended dust covers are separate products, so both should be ordered when converting the low beam to LED.
Shop 2015–2020 F-150 Extended LED Dust Covers →
1. Compatible FUZED LED H11 low-beam bulbs
2. 2015–2020 Ford F-150 extended LED dust covers
2015–2017 Ford F-150 Rear Lighting Bulb Sizes
Reverse Light — 3156
The reverse-light bulb size is 3156 on the 2015–2017 Ford F-150 applications covered by this guide.
FUZED LED offers a compatible 2,100-lumen 3156 LED reverse-light kit designed to provide substantially more bright white illumination behind the truck when reversing at night.
Shop FUZED LED 2,100-Lumen 3156 Reverse Lights →
Rear Brake & Turn Signal — 3157
The rear brake and turn-signal bulb size is 3157.
This bulb size is included in the guide so owners can identify the correct factory rear brake/turn-signal application before purchasing replacement lighting.
License Plate Light — 168 / 194 / T10
The license plate lights use a 168/194/T10-family bulb.
A white LED replacement can provide a cleaner, modern appearance compared with the original incandescent bulb.
Shop FUZED LED License Plate Bulbs →
Cargo Light & Third Brake Light Bulb Sizes
Cargo Lights — 921 / T15
The cargo-light positions use 921/T15 bulbs.
Upgrading these bulbs to bright white LEDs can provide significantly more useful illumination in the truck bed at night.
Third Brake Light — 921 / T15
The third brake-light position also uses a 921/T15-size bulb.
When replacing this position with LED, make sure the replacement is intended for the red third-brake-light application rather than the white cargo-light position.
Recommended FUZED LED Upgrades for the 2015–2017 F-150
For factory halogen-equipped trucks, the primary FUZED LED upgrades covered by this guide include:
- Low Beam: H11 FUZED LED
- High Beam: 9005/HB3 FUZED LED
- Fog Lights: 9145/H10 FUZED LED
- Front Turn Signal: FUZED LED switchback
- Reverse Lights: 3156 2,100-lumen FUZED LED
- Cargo Lights: 921 white LED
- Third Brake Light: 921 red LED
- License Plate Lights: 168/194/T10 LED
Remember that the H11 low-beam LED upgrade requires the separate extended F-150 dust covers.
LED Installation & CANbus Information
The compatible FUZED LED headlight products listed in this guide are intended for the factory halogen applications described above.
No CANbus decoder is required when using the compatible FUZED LED headlight bulbs on these trucks.
The H11 low-beam LED does require the extended dust cover for physical clearance, but an additional CANbus decoder is not needed.
Installing the H11 LED Low Beam
After installing the H11 LED bulb, make sure the bulb is fully seated and securely locked into the headlight housing.
The extended low-beam dust cover should then be installed to provide the additional clearance required behind the LED cooling assembly while keeping the rear of the headlight protected.
LED Light Output & Headlight Beam Pattern
A good LED headlight upgrade depends on more than simply increasing lumen output. The LED light source must also be positioned correctly inside the factory headlight so the reflector or projector can direct the light properly.
When installing compatible FUZED LED H11 low-beam or 9005/HB3 high-beam bulbs, the LED chips should face horizontally from side to side.
Viewed from behind the bulb, the LED chips should sit at approximately the 3 o'clock and 9 o'clock positions.
After installation, confirm the bulbs are fully seated and check the headlight beam pattern and aim before driving at night.
2015–2017 Ford F-150 Bulb Size FAQs
What size low-beam bulb does a 2015–2017 Ford F-150 use?
Factory halogen-equipped 2015–2017 Ford F-150 trucks use an H11 low-beam bulb. Trucks equipped with factory LED headlights use integrated LED headlight assemblies instead.
What size high-beam bulb does a 2015–2017 Ford F-150 use?
Factory halogen-equipped trucks use a separate 9005/HB3 high-beam bulb.
Do I need extended dust covers when installing H11 LED low beams?
Yes. The factory low-beam dust cover does not provide enough clearance for the compatible LED cooling assembly. The same 2015–2020 F-150 extended LED dust covers used for later trucks fit this application.
Shop F-150 Extended LED Dust Covers →
Do FUZED LED headlights require CANbus decoders on the 2015–2017 F-150?
No. Compatible FUZED LED headlight bulbs do not require CANbus decoders on the factory halogen-equipped applications covered by this guide.
What fog-light bulb does a 2015–2017 Ford F-150 use?
The factory halogen fog-light application uses a 9140/H10 bulb. The compatible FUZED LED upgrade uses our 9145/H10 LED fog-light bulb.
What front turn-signal bulb does a 2015–2017 Ford F-150 use?
The front turn signal uses a 7444 bulb. A compatible FUZED LED switchback turn-signal upgrade is available for this application.
What side-marker bulb does a 2015–2017 Ford F-150 use?
The side marker uses a 2825/T10 bulb.
What size reverse-light bulb does a 2015–2017 Ford F-150 use?
The reverse-light bulb size is 3156. FUZED LED offers a compatible 2,100-lumen 3156 LED reverse-light kit.
What size rear brake and turn-signal bulb does a 2015–2017 F-150 use?
The rear brake and turn-signal bulb size is 3157.
What size cargo-light bulb does a 2015–2017 F-150 use?
The cargo lights use 921/T15 bulbs.
What size third brake-light bulb does a 2015–2017 F-150 use?
The third brake-light position also uses a 921/T15-size bulb.
What size license plate bulb does a 2015–2017 Ford F-150 use?
The license plate lights use a 168/194/T10-family bulb.
Can I use H11 and 9005 LED bulbs if my F-150 has factory LED headlights?
No. The H11 low-beam and 9005/HB3 high-beam recommendations in this guide apply specifically to factory halogen-equipped trucks. Factory LED headlights use integrated LED assemblies.
Before Ordering LED Bulbs for Your 2015–2017 F-150
Before ordering, confirm these important fitment details:
- Model year: 2015, 2016 or 2017
- Headlight type: Factory halogen or factory LED
- Lighting position: Low beam, high beam, fog light, turn signal, side marker, reverse, brake/turn, cargo, third brake, or license plate
- Low-beam LED installation: H11 LED upgrades require the separate extended dust covers
If your truck has aftermarket headlights, aftermarket tail lights, or modified factory wiring, verify the requirements of those components separately.
