Looking for the correct 2021–2023 Ford F-150 bulb size? This guide covers 2021, 2022 and 2023 Ford F-150 trucks and includes low beam, high beam, fog light, front turn signal, side marker, rear brake/turn signal, reverse light, cargo light, third brake light, and license plate light information.
The most important thing to verify before ordering headlight bulbs is your truck's factory headlight configuration. The H11 and 9005 LED headlight upgrades in this guide are for F-150 trucks equipped with factory halogen headlights. Trucks equipped with factory LED headlights use integrated LED headlight assemblies and do not use the replaceable H11 and 9005 headlight bulbs listed here.
Quick Navigation
- 2021–2023 F-150 Bulb Size Chart
- Factory Halogen vs Factory LED Headlights
- Headlights, Fog Lights, Turn Signals & Side Markers
- LED Fitment & Factory Dust Cover
- Rear Lighting Bulb Sizes
- Cargo & Third Brake Lights
- Recommended LED Upgrades
- Installation & CANbus Information
- Light Output & Beam Pattern
- Frequently Asked Questions
2021–2023 Ford F-150 Bulb Size Chart
Use the chart below as a quick reference. Headlight bulb sizes shown are for factory halogen-equipped trucks. Some other lighting positions may also use integrated factory LEDs depending on the truck's factory equipment.
| Lighting Position | Bulb Size | FUZED LED Upgrade |
|---|---|---|
| Low Beam — Factory Halogen | H11 | Shop H11 LED Bulbs |
| High Beam — Factory Halogen | 9005 / HB3 | Shop 9005/HB3 LED Bulbs |
| Fog Light — Factory Halogen | 9140 / H10 | 9145/H10 FUZED LED Upgrade |
| Front Turn Signal | 4257 | No FUZED LED replacement currently |
| Side Marker | W5W / T10 | Verify factory configuration before ordering |
| Rear Brake / Turn Signal | 4257 | No FUZED LED replacement currently |
| Reverse Light | WT21W | No FUZED LED replacement currently |
| Cargo Light | 921 / T15 or Factory LED | 921 LED upgrade available for replaceable-bulb configuration |
| Third Brake Light | 921 / T15 or Factory LED | 921 LED upgrade available for replaceable-bulb configuration |
| License Plate Light | W5W / T10 | Shop LED License Plate Bulbs |
Factory Halogen vs Factory LED Headlights
The 2021–2023 Ford F-150 was available with different factory lighting configurations. Before ordering replacement headlight bulbs, determine whether your truck is equipped with factory halogen or factory LED headlights.
Factory Halogen Headlights
Factory halogen-equipped trucks use:
- Low Beam: H11
- High Beam: 9005/HB3
Both positions can be upgraded with compatible FUZED LED bulbs.
Factory LED Headlights
Factory LED-equipped F-150 trucks use integrated LED headlight assemblies instead of conventional replaceable H11 and 9005 halogen bulbs.
If your truck has factory LED headlights, the H11 low-beam and 9005/HB3 high-beam recommendations in this guide do not apply.
2021–2023 Ford F-150 Headlight, Fog Light, Turn Signal & Side Marker Bulb Sizes
Low Beam — H11
2021–2023 Ford F-150 trucks equipped with factory halogen headlights use an H11 low-beam bulb.
Compatible FUZED LED H11 bulbs can replace the factory halogen bulb and provide brighter, whiter illumination.
Compare FUZED LED H11 Low-Beam Bulbs →
High Beam — 9005 / HB3
The factory halogen high beam uses a separate 9005/HB3 bulb.
Compare FUZED LED 9005/HB3 High-Beam Bulbs →

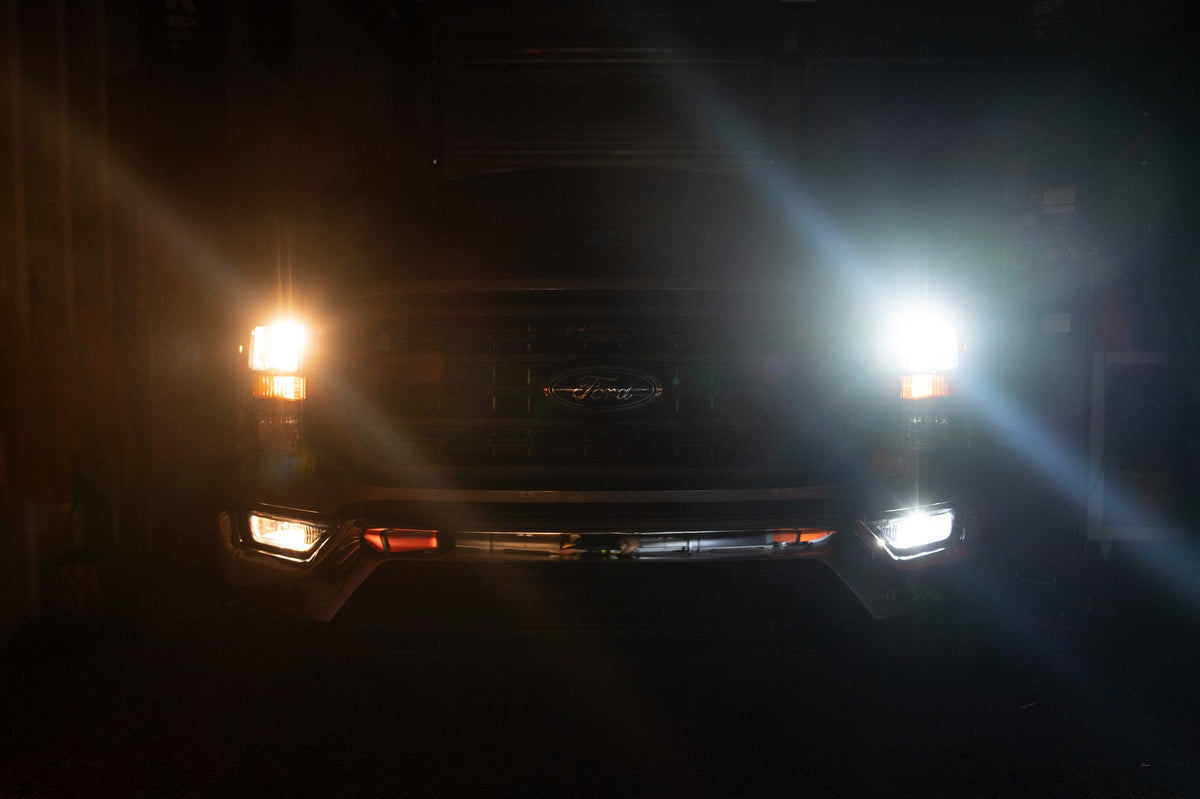

FUZED LED Headlight Upgrade
Upgrading the factory halogen H11 low beams and 9005/HB3 high beams to compatible FUZED LED bulbs provides brighter, whiter illumination compared with the original halogen lighting.
The 2021–2023 F-150 also provides enough room inside the factory headlight housing for the FUZED LED F1 Series to fit without requiring an extended low-beam dust cover.
Fog Light — 9140 / H10
Factory halogen fog lights use a 9140/H10 bulb.
The compatible FUZED LED upgrade uses our 9145/H10 LED fog-light bulb.
Shop FUZED LED 9145/H10 Fog Light Bulbs →
Front Turn Signal — 4257
The front turn-signal application uses a 4257 bulb.
FUZED LED does not currently offer an LED replacement for this position, so we recommend retaining the correct factory-style bulb.
Side Marker — W5W / T10
The replaceable side-marker application uses a W5W/T10-family bulb. Some factory lighting configurations may use integrated LEDs, so inspect your truck's factory lighting configuration before ordering a replacement.
FUZED LED F1 Series Fits Behind the Factory Dust Cover
Unlike the earlier 2015–2020 F-150 halogen headlight design, the 2021–2023 F-150 provides plenty of room inside the headlight housing for the FUZED LED F1 Series.
No extended low-beam dust cover is required. After the compatible LED bulb is properly installed, the original factory dust cover can be reinstalled over the bulb.
FUZED LED F1 Series bulbs fit inside the factory halogen headlight housing.
No extended dust cover is required.
The original factory dust cover can be reinstalled after the LED bulb is installed.
2021–2023 Ford F-150 Rear Lighting Bulb Sizes
Reverse Light — WT21W
The replaceable reverse-light application uses a WT21W bulb.
FUZED LED does not currently offer a replacement LED bulb for this WT21W reverse-light application.
Rear Brake & Turn Signal — 4257
The replaceable rear brake and turn-signal application uses a 4257 bulb.
FUZED LED does not currently offer an LED replacement for this position.
License Plate Light — W5W / T10
The replaceable license plate light uses a W5W/T10-family bulb.
A compatible white LED replacement can provide a cleaner, brighter appearance compared with the original incandescent license plate lighting.
Shop FUZED LED License Plate Bulbs →
Cargo Light & Third Brake Light Bulb Sizes
The cargo and third-brake-light configuration can vary depending on how the truck was factory equipped.
Replaceable-Bulb Configuration — 921 / T15
Trucks equipped with conventional replaceable bulbs use 921/T15 bulbs in the applicable cargo and third-brake-light positions.
For these trucks, FUZED LED offers a white 921 LED upgrade for the cargo-light position and a red 921 LED upgrade for the third brake light.
Factory LED Configuration
Some 2021–2023 F-150 trucks are equipped with factory integrated LED cargo and/or third brake lighting. These configurations do not use conventional replaceable 921 bulbs.
Recommended FUZED LED Upgrades for the 2021–2023 F-150
For compatible factory halogen and replaceable-bulb configurations, the primary FUZED LED upgrades covered by this guide include:
- Low Beam: H11 FUZED LED
- High Beam: 9005/HB3 FUZED LED
- Fog Lights: 9145/H10 FUZED LED
- Cargo Lights: White 921 LED on replaceable-bulb configurations
- Third Brake Light: Red 921 LED on replaceable-bulb configurations
- License Plate Lights: W5W/T10 LED
No FUZED LED replacement is currently recommended for the 4257 front turn signal, 4257 rear brake/turn signal, or WT21W reverse light.
Headlight Installation & CANbus Information
Headlight-bulb access is through the inner fender-well area, similar to the 2018–2020 F-150.
Turn the front wheel to provide additional working room, remove the necessary inner fender-liner fasteners, and carefully pull the liner back enough to access the rear of the headlight housing.
After installing the LED bulb, confirm that it is fully seated and locked into position. The 2021–2023 headlight housing provides enough room for the compatible FUZED LED F1 Series, allowing the factory dust cover to be reinstalled normally.
No CANbus decoder or additional resistor is required when using the compatible FUZED LED H11, 9005/HB3, and 9145/H10 bulbs in the applications covered by this guide.
✓ Access the headlight through the inner fender well.
✓ Install the compatible FUZED LED bulb.
✓ No extended dust cover is required.
✓ Reinstall the original factory dust cover.
✓ No additional CANbus decoder is required with the compatible FUZED LED bulbs.
LED Light Output & Headlight Beam Pattern
A proper LED headlight upgrade is about more than maximum lumen output. The LED light source must also be positioned correctly inside the factory headlight so the reflector can properly control and direct the light.
When installing compatible FUZED LED H11 low-beam or 9005/HB3 high-beam bulbs, the LED chips should face horizontally from side to side.
Viewed from behind the installed bulb, the LED chips should sit at approximately the 3 o'clock and 9 o'clock positions.
After installation, confirm that each bulb is fully seated and check the headlight beam pattern and aim before nighttime driving.
2021–2023 Ford F-150 Bulb Size FAQs
What size low-beam bulb does a 2021–2023 Ford F-150 use?
Factory halogen-equipped 2021–2023 Ford F-150 trucks use an H11 low-beam bulb. Factory LED-equipped trucks use integrated LED headlight assemblies instead.
What size high-beam bulb does a 2021–2023 Ford F-150 use?
Factory halogen-equipped trucks use a separate 9005/HB3 high-beam bulb.
Do I need extended dust covers when installing LED headlights?
No. The 2021–2023 F-150 factory halogen headlight housing has enough room for the compatible FUZED LED F1 Series. The original factory dust cover can be reinstalled after the LED bulb is installed.
Do FUZED LED headlights require CANbus decoders on the 2021–2023 F-150?
No. The compatible FUZED LED H11 and 9005/HB3 headlight bulbs do not require additional CANbus decoders on the factory halogen-equipped trucks covered by this guide.
What fog-light bulb does a 2021–2023 Ford F-150 use?
The replaceable factory halogen fog-light application uses a 9140/H10 bulb. The compatible FUZED LED upgrade uses our 9145/H10 LED fog-light bulb.
What front turn-signal bulb does a 2021–2023 Ford F-150 use?
The replaceable front turn-signal application uses a 4257 bulb. FUZED LED does not currently offer an LED replacement for this position.
What size reverse-light bulb does a 2021–2023 Ford F-150 use?
The replaceable reverse-light application uses a WT21W bulb. FUZED LED does not currently offer an LED replacement for this bulb.
What rear brake and turn-signal bulb does a 2021–2023 F-150 use?
The replaceable rear brake/turn-signal application uses a 4257 bulb. FUZED LED does not currently offer an LED replacement for this position.
What size cargo-light bulb does a 2021–2023 F-150 use?
Trucks equipped with replaceable cargo-light bulbs use 921/T15 bulbs. Some trucks use integrated factory LED cargo lighting instead and therefore do not have a conventional bulb to replace.
What size third brake-light bulb does a 2021–2023 F-150 use?
Replaceable-bulb configurations use 921/T15 bulbs. Some trucks are equipped with integrated factory LED lighting in this position.
What size license plate bulb does a 2021–2023 Ford F-150 use?
The replaceable license plate light uses a W5W/T10-family bulb.
Can I use H11 and 9005 LED bulbs if my F-150 has factory LED headlights?
No. The H11 low-beam and 9005/HB3 high-beam recommendations apply specifically to factory halogen-equipped trucks. Factory LED headlights use integrated LED assemblies rather than these conventional replaceable bulbs.
Before Ordering LED Bulbs for Your 2021–2023 F-150
Before ordering, confirm these important fitment details:
- Model year: 2021, 2022 or 2023
- Headlight type: Factory halogen or factory LED
- Lighting position: Low beam, high beam, fog light, turn signal, side marker, reverse, brake/turn, cargo, third brake, or license plate
- Cargo/third brake configuration: Verify whether your truck uses replaceable 921 bulbs or integrated factory LEDs
If your truck has aftermarket headlights, aftermarket tail lights, or modified factory wiring, verify the requirements of those components separately.
Low Beam — Factory Halogen:
Shop H11 LED Bulbs →
High Beam — Factory Halogen:
Shop 9005/HB3 LED Bulbs →
Fog Lights — Factory Halogen:
Shop 9145/H10 LED Fog Lights →
Cargo & Third Brake Lights — Replaceable-Bulb Configurations:
Shop compatible FUZED LED 921 upgrades after confirming your truck uses replaceable 921 bulbs.
License Plate Lights:
Shop W5W/T10 LED License Plate Bulbs →
